Introduction

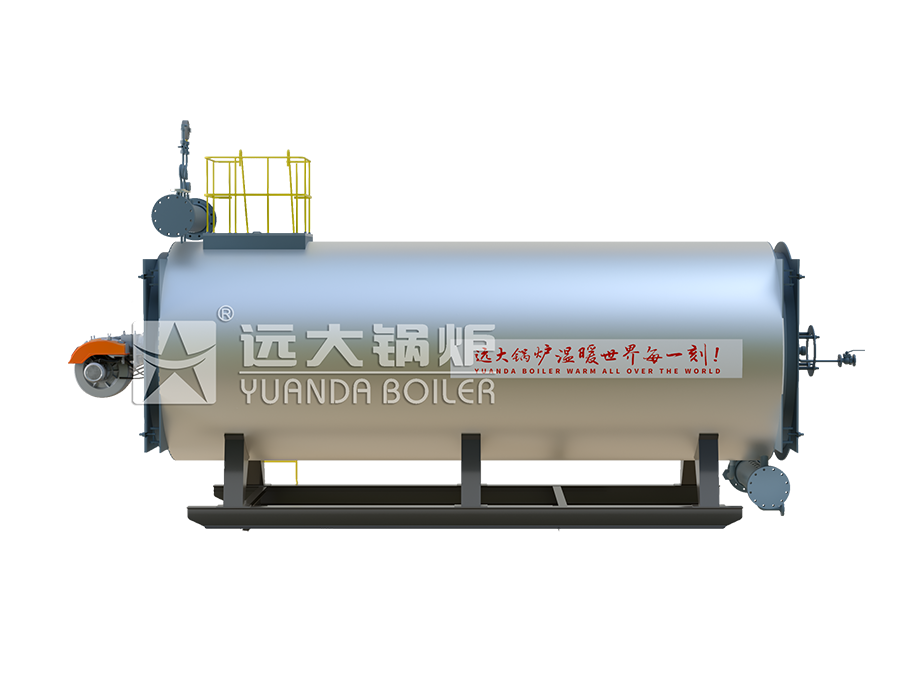

YY(Q)W series thermal oil boiler is horizontal chamber combustion three-coil structure, wet back boiler. This boilers are fully automatic, safe and designed to operate on a wide range of liquid and gaseous fuels like heavy oil, light oil, gas, and dual fuel options.
Thermal oil boiler is a new type of special boiler with low pressure and high precision temperature working characteristics. Thermal oil boiler uses hot oil as heat transfer medium, hot oil circulation pump to make the medium has a forced circulation, then deliver the heat to heating need equipment and then go back to the heating furnace.

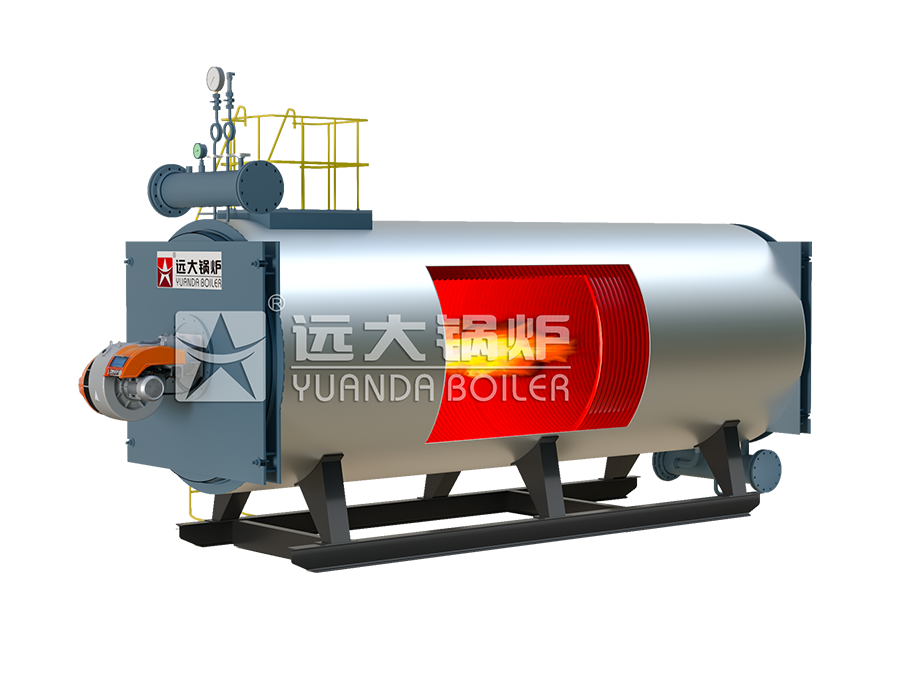

YYQW thermal oil boiler adopts horizontal chamber-fired three-coil pipe structure, the boiler body is composed of an outer coil pipe, a middle coil pipe and an inner coil pipe. Thermal oil boiler can be used for heating in various production process where the heating temperature is between 150℃ – 350℃ and temperature is adjustable.
Advantages
Feature
YY(Q)W thermal oil boiler adopts a horizontal chamber-fired three-coil structure, and the body is composed of an outer coil, a middle coil and an inner coil
- Close packed disc tube heating surface, heating surface layout adequacy, multi-backhaul heat exchanger.
- Furnace size match with burning flame, radiation heat transfer efficiency.
- Positive pressure combustin, so that combustion efficiency is greatly improved.
- Boiler quality insulation materials and special construction technology, less heat loss, ther exhaust gas temperature is low, the high thermal efficiency of ther boiler.
- By fully rational surface layout, boiler warming fast start.
- Close-packed disc tube heating surface heating surface arrangement sufficient to reduce the tube sheet heat load, conducting oil safer to use.
- The boiler operation monitor remote and nearly complete automatic control and monitoring instrumentation, safe, reliable, easy to operate
Boiler full assembled, compact structure, small footprint, is extremely easy to install and flexible, as long as the boiler is located based on.
Difference in appearance, vertical type boiler help saving boiler roon space, smaller occupy area.
