Introduction

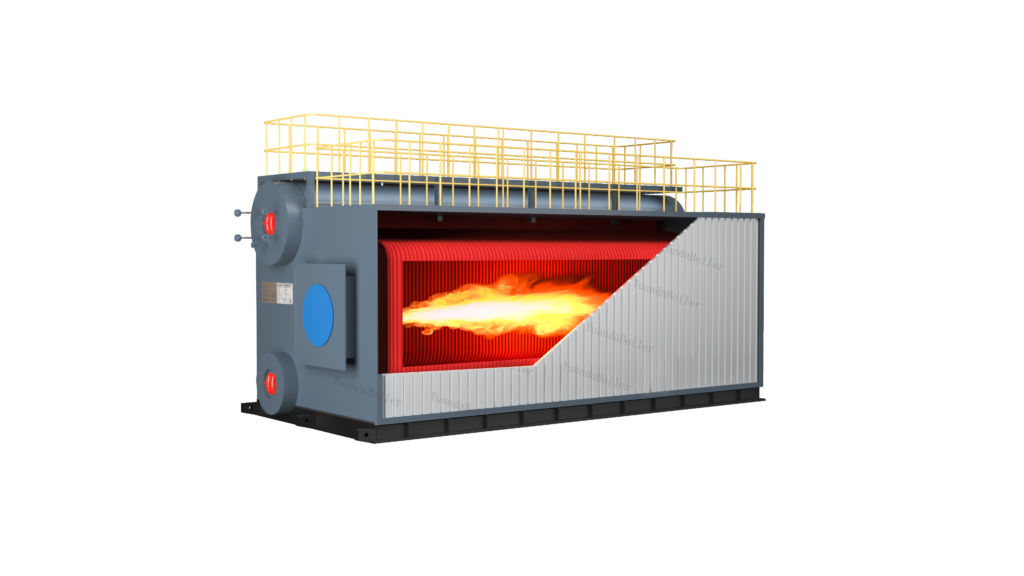

SZS oil gas fired boiler, also called water tube boiler, capacity from 4 ton to 50 ton. It adopts double drum D type vertical arrangement, full membrane wall structure, reasonale and compact layout. Quick installation, less investment in boiler house infrastructure and short installation period.

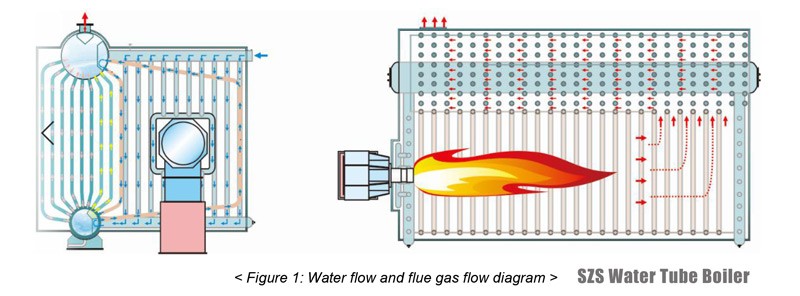

SZS gas & oil water tube boiler is arranged as drum longitudinal type “D” shape, it’s quickly assembled boiler with water tube, has the characteristics of high steam quality, sufficient output, high thermal efficiency, etc.
The structure of furnace water cooling wall and convection gas pass is membrane wall, have good sealability, and effectively reduce refractory brick quantity and maintenance workload.
Parameters
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) |
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 |
| WNS8-1.0/1.25/1.6-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 |
Advantages
SZS boilers are designed for high efficiency and can achieve a high level of thermal efficiency, ensuring better fuel utilization and lower operating costs.
These boilers typically have a larger heating surface area compared to other types, which enhances heat transfer and efficiency.
Despite their high efficiency and power, SZS boilers are often designed to be compact, saving space and making installation more manageable.
They are designed to meet stringent emission standards, reducing environmental impact by minimizing pollutants released into the atmosphere.
SZS boilers are known for their reliability and durability, offering consistent performance over extended periods with proper maintenance.
While regular maintenance is necessary for any boiler system, SZS boilers often have features that facilitate easier access for maintenance and servicing.
Application
For saturated steam, superheated steam or hot water supply, in food, beverage, refining, petrochemical, pulp and paper, mining, manufacturing, utilities and other industries.
